Ropax, 363 passengers, Berths 240, 2002, 1992, Ref C3444

Owners looking for long CHARTER employment for their new purchase as follows

Open Greece June 2025

DD/SS. 2029

RO-PAX
built 1986(major conversion 2002)
Cyprus flag
LOA/breadth/depth : 189 / 23 / 14 meters
DWT : 5282,40 Tns
GRT : 22874 tns
NRT : 6862 tns
Class : Polski Register
No. of Persons on board : 399 (363 passengers + 36 crew)
Certified for 2.3mtrs Significant Wave Height

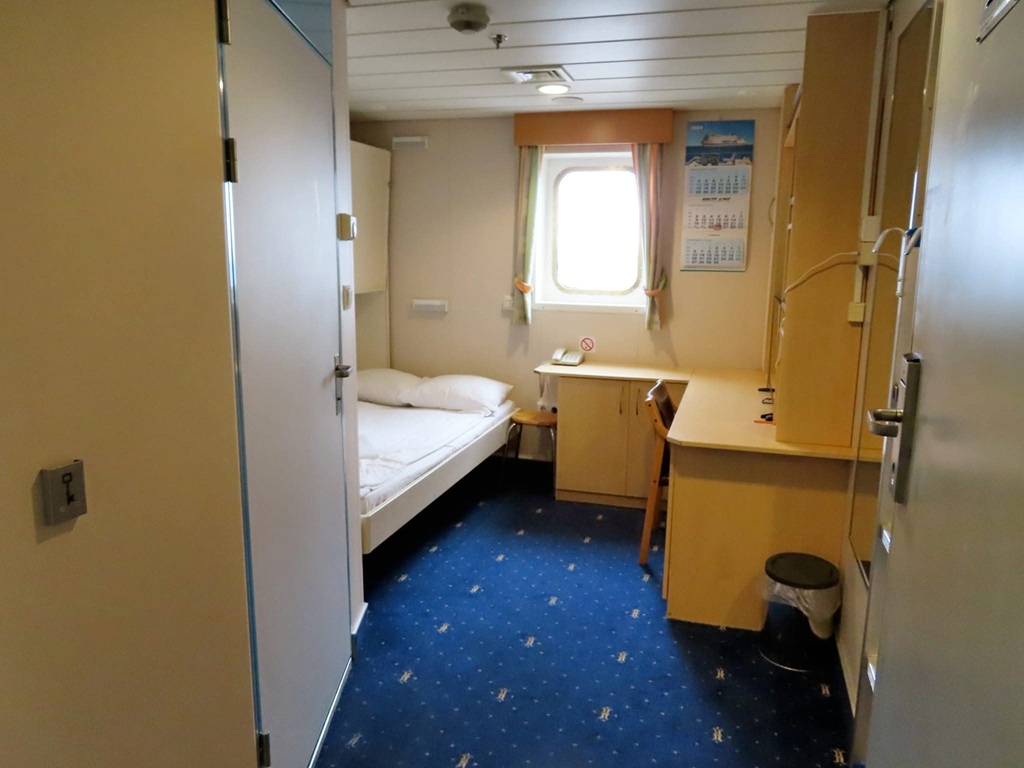

No. of Passenger Cabins : 70 - Total Berths : 240

Cabins Breakdown (50 x 4beds + 19 x 2beds + 1 x 2beds PRM) :

Deck 8 : 11 x 4bed Cabins ? External with Private Facilities 13 x 4bed Cabins ? Internal with Private Facilities 11 x 2bed Cabins ? Internal with Private Facilities

Deck 7 : 1 x 2bed Cabin ? External with Private Facilities (PRM Cabin) 12 x 4bed Cabins ? External with Private Facilities
5 x 2bed Cabins - External with Private Facilities 14 x 4bed Cabins - Internal with Private Facilities 3 x 2bed Cabins - Internal with Private Facilities

Passenger Areas :

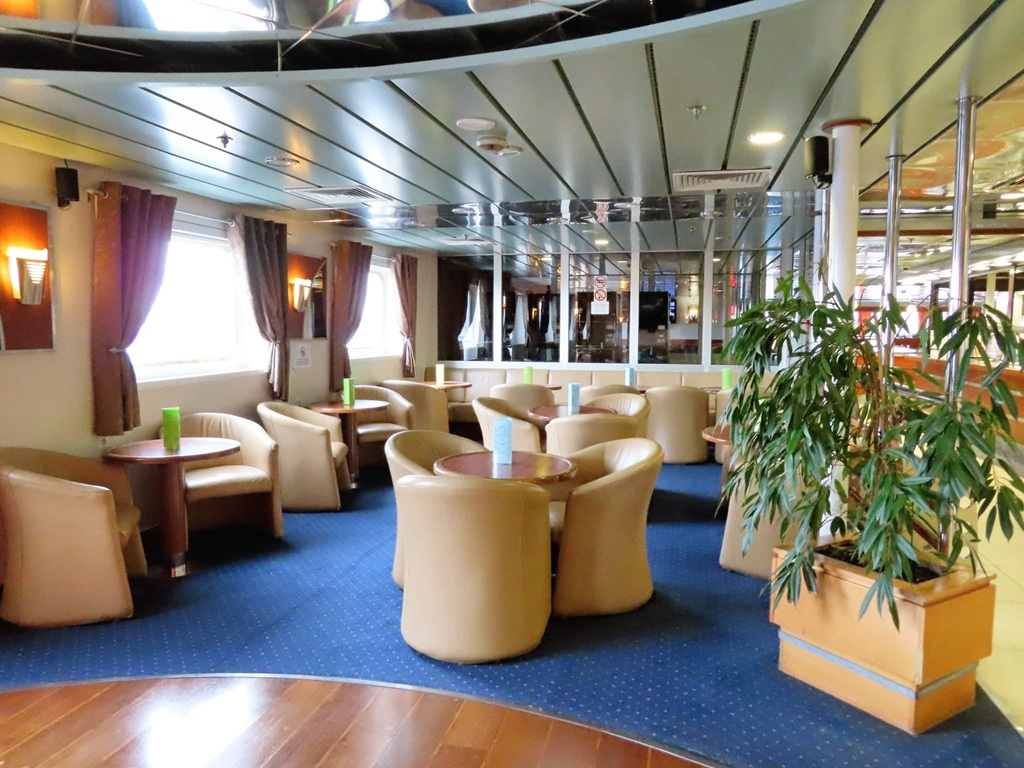

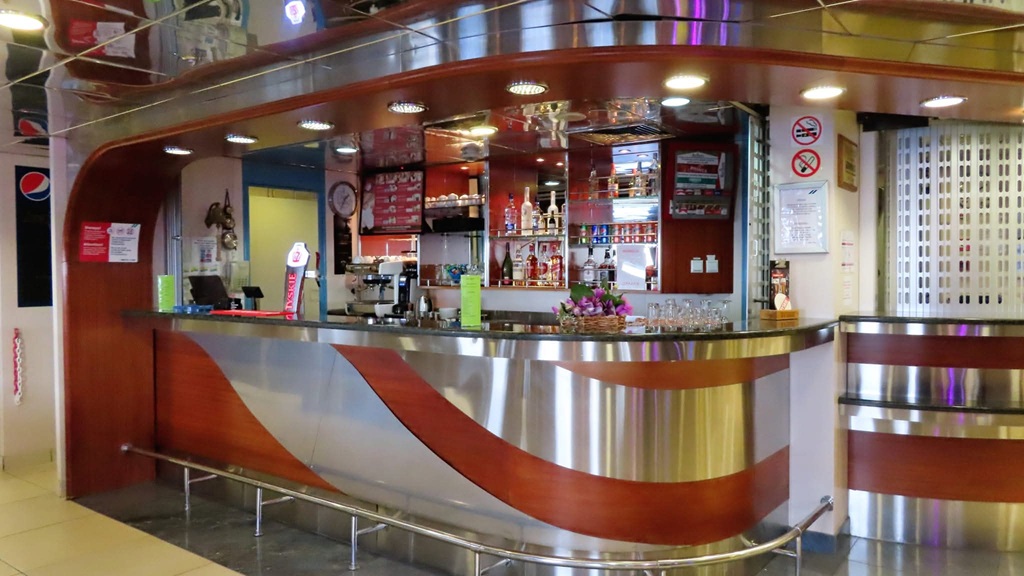

Deck 7 : Bar (60 Seats)

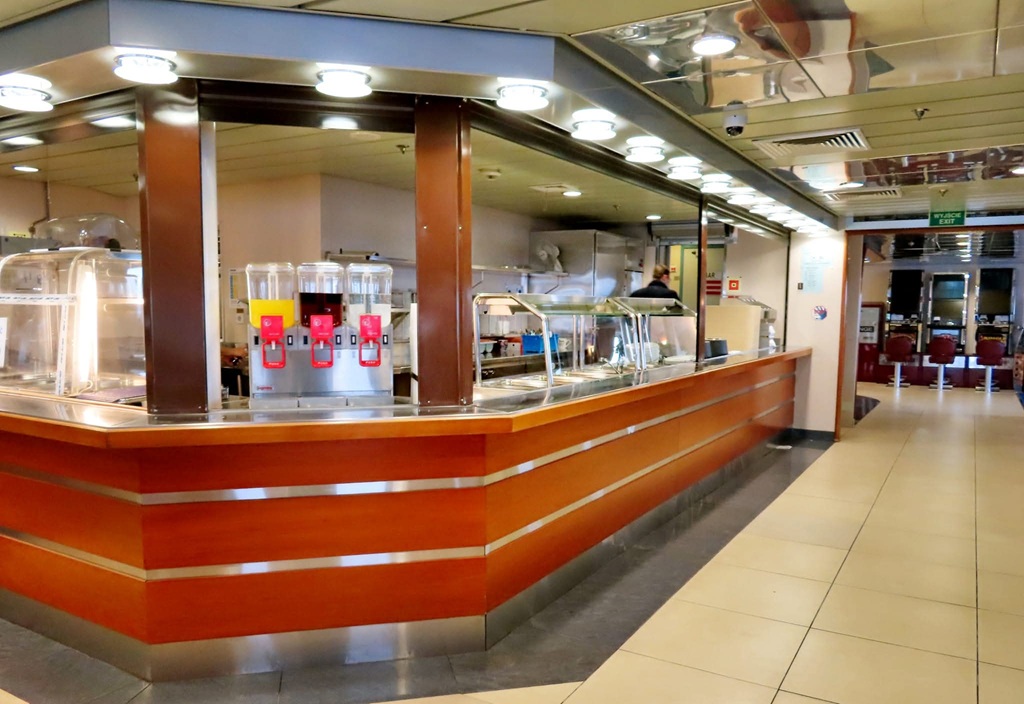

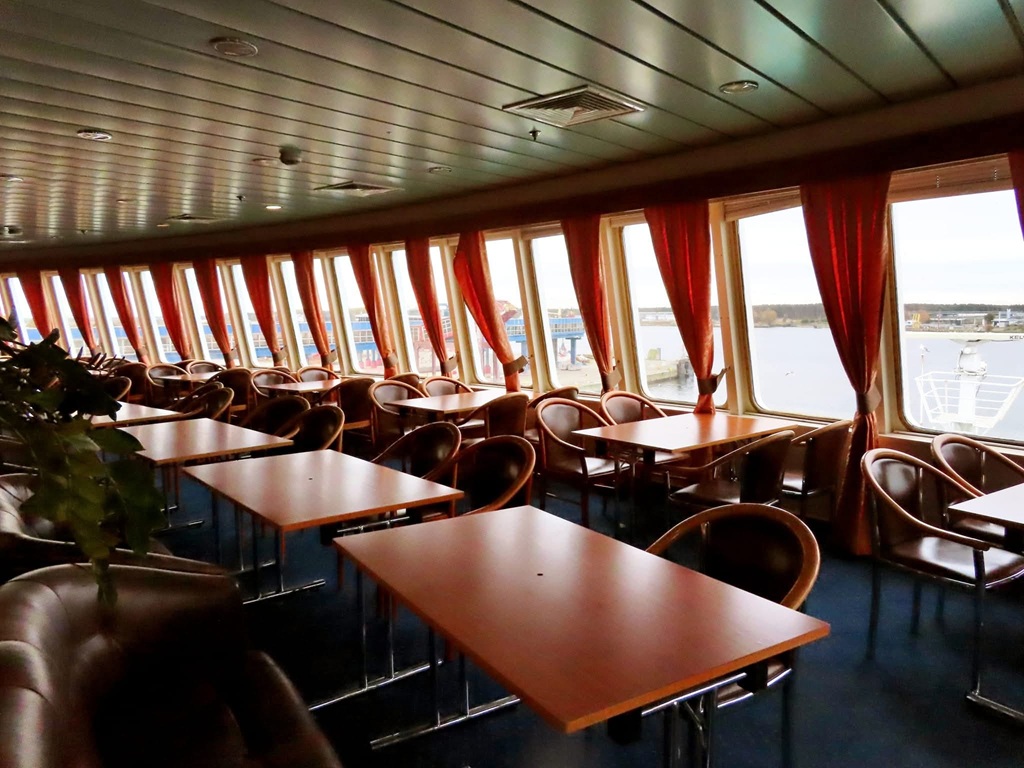

Self-Service Restaurant (180 Seats) Shop
Lift

Total Lane Metres onboard : 1970 lm

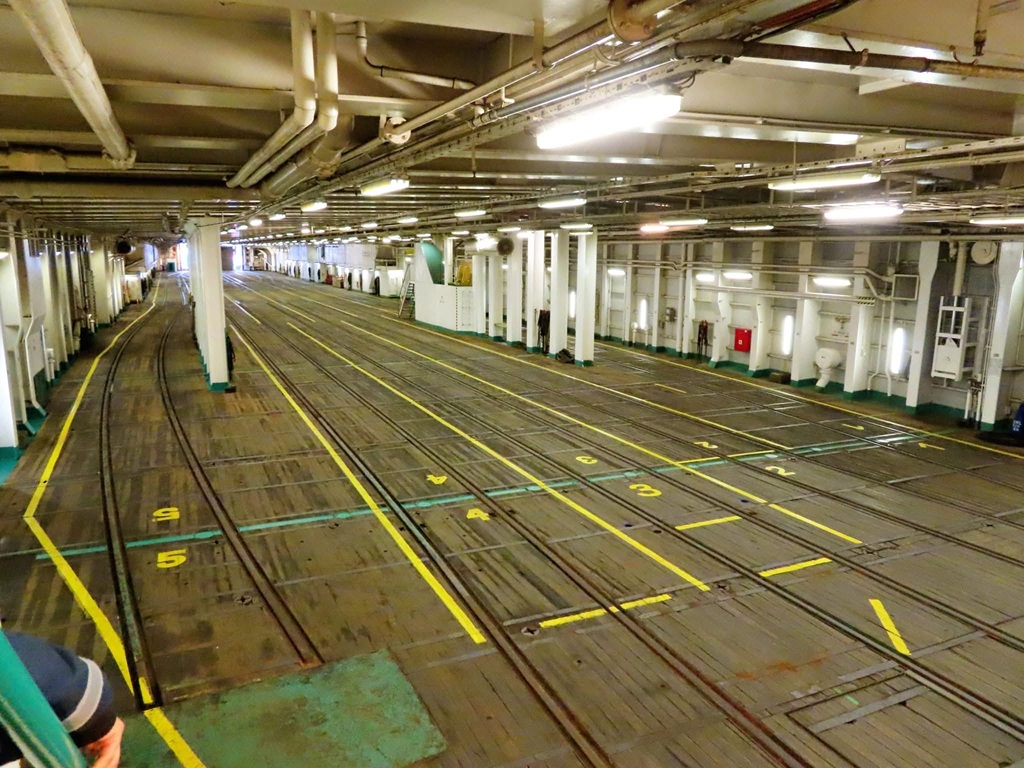

Lane Metres for Trucks (Deck 3 C 5) = 1720 lm (About 90 trucks) Lane Metres for Cars/Vans (Deck 7) = 250 lm (About 50/55 cars) Lane Metres for Trains (Deck 3) = 645 lm
Vessel Certified to Carry Dangerous Goods Cargoes
Total No. of 380V Reefer Plugs : 20pcs (Cargo Deck 3 C Cargo Deck 5) Total No. of 220V El. Plugs : 40pcs (Cargo Deck 3 C Cargo Deck 5)

Cargo Access to Deck 7 :
Tiltable Ramp from Deck 5 (Length 38.9m / Driving Width 3.00m / Height 4.00m)

Cargo Access to Deck 5 : - Free Height 4.80mtrs
External Ramp on Deck 5 (SB ? Frames 35-47, connecting with shore facilities only)

Cargo Access to Deck 3 : - Free Height 4.80mtrs
Forward Side Ramp (SB ? Frames 219-230) ? FH 4.90mtrs AFT Ramp (5.80m width x 4.82m length) ? FH ? 5.30mtrs

Notes (Vessel will undergo conversion works in Greece from April till mid-June 2025):
-Installation of new fixed inner ramp connecting Deck 3 with Deck 5
-Aft Ramp new dimensions Length 10.00m incl flaps, Width 8.75m


Axle weights and loads on ramps/decks : Cargo Deck 7 (Mainly Private Cars) :
- Axle Load 1.5 T Cargo Decks 3 C 5
- Axle Load 11 T

M/E 4 x MAN BCW, 6L40/45 ? 3300kw @ 600RPM, Total KW 13200 A/E 2 x WARTSILA, 6R32BC - 2045kw @ 750RPM
Shaft Generators : WAB 630 F4W, 2256kw @ 1500RPM x 2 Bow Thrusters : 2 x 1100 KW
Aft Thruster : 1 x 750 KW

Speed / Consumption (In good weather conditions, with maximum beaufort scale 4 and/or douglas sea scale 3 (up to 1.25m height of wave), no negative influence of swell, no adverse current and without shaft generators engaged :
Max Service Speed 18 knots : Consumption RMD 80 (0.1%) or MGO (0.1%) = abt 2000kg/h Service Speed 16 knots : Consumption RMD 80 (0.1%) or MGO (0.1%) = abt 1500kg/h
Eco Speed 13 knots : Consumption RMD 80 (0.1%) or MGO (0.1%) = abt 1000kg/h

A/E Consumption :
In port ? medium load 650 kw ? abt 0.17mt/hour (RMD 80 ? 0.1% or MGO 0.1%) At Sea ? medium load 700 kw ? abt 0.18mt/hour (RMD 80 ? 0.1% or MGO 0.1%)

Boiler Consumption : about 3.5mt / 24hrs (RMD 80 ? 0.1% or MGO 0,1%)

Life-Saving Equipment
2 x Life Boats x 150p each
8 x Life-Rafts x 25p each (Davit Launched - Inflatable Self-Righting) 1 x MOR
FRB + Rescue Boat
"all details abt"

Inspection can be arranged

Charter, Ref C3444
or sale 9m Euro
