Rowan LeTourneau Technologies 84-S Class Jack-Up Rig Ref C4113

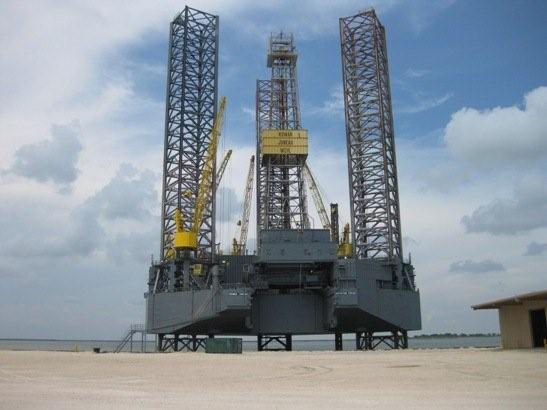

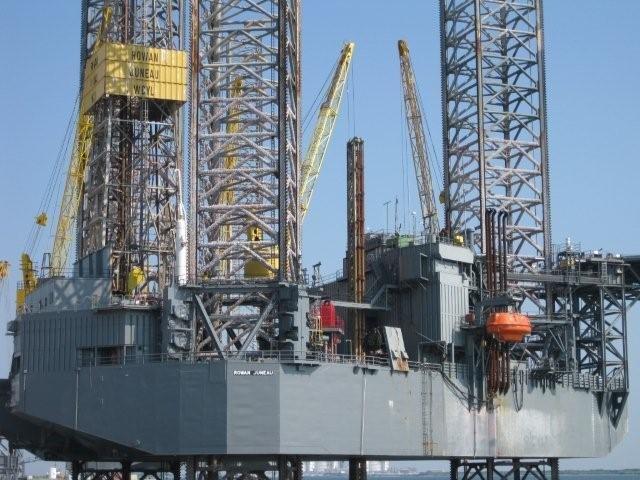

[Rowan LeTourneau 84-S Class Jack-Up Rig]
Usd 15,000,000
negotiable

Rowan LeTourneau Technologies 84-S Class Jack-Up Rig Ref C4113

Rowan
LeTourneau Technologies 84-S Class Jack-Up

Maximum Water Depth 328
Leg Length
466 ft
Hook Load 1,500,000 lbs
Hull Length
248 ft
Mud System Maximum Pressure 5,000 psi
Hull Width
201 ft
Cantilever Skid Out N/A
Hull Depth
26 ft
Substructure Travel 7.5 ft. transverse to port or starboard
Gear Unit Height
24 ft
Quarters Accommodation 81 Persons
Maximum Drilling Depth
25,000 ft
Heliport - can accommodate: Sikorsky S-61N
Longitudinal Leg Centers
129 ft
Year In Service 1975
Transverse Leg Centers
142 ft
Life Enhancement 2006


Maximum Drilling Payload 7,311,000 lbs
Hook Load 1,500,000 lbs
Rotary Load 1,500,000 lbs
Setback load 600,000 lbs
Liquid Mud 1,467 bbls
Sand Traps 170 bbls
Pipe Storage (main) 2,000sqft x 7ft high
Pipe Storage (cantilever) N/A
Covered Sack Storage 1,500 sq ft
Bulk Cement 5,400 cu ft
Bulk Barite 5,400 cu ft
Potable Water 1,128 bbls
Drill Water 6,624 bbls (incl. combo tanks)
Diesel Fuel 3,779 bbls
Base Oil 700 bbls

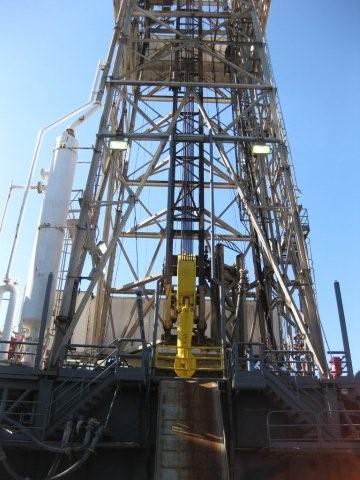

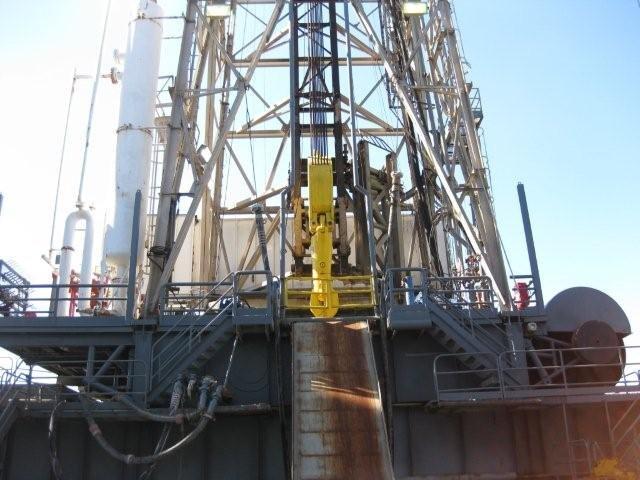

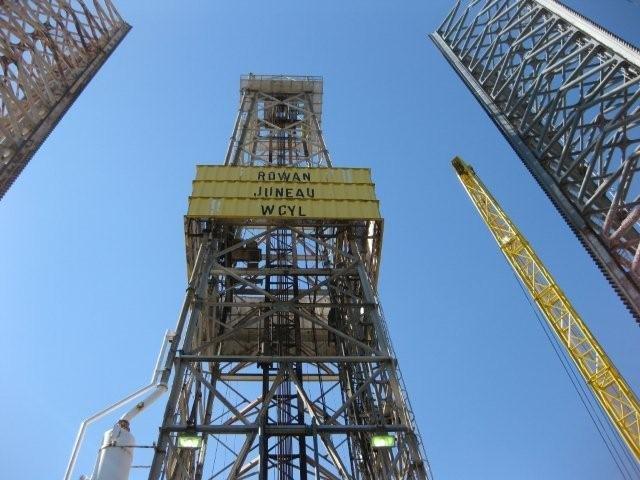

Derrick 160ft Woolslayer 30ft x 30ft
Top Drive / Power Swivel National PS2 - 650/650 rated for 650 tons
Travelling Block IDECO TB-750, Capacity: 750 tons
Crown Block National 700 FA , 857 tons
Drawworks National 1625-DE
Auxiliary Brake Elmago 15015 w/ battery backup
Drill Line 1-5/8"
Rotary National C375
Prime Movers (6) Caterpillar D-399 @ 1,139 hp each
Emergency Generator (1) Caterpillar D-379 @ 500 hp
Cementing Equipment BJ Unit 10,000 psi
Torque Wrench / Spinner Varco Iron Roughneck TW-61 / Spinmaster Hawk
Cranes (4) LeTourneau PCM120 Pedestal Cranes


Diverter 21 1/4” Hydril 2k with 12” outlets
Annular 13-5/8" Hydril 10k
BOP (3) 13-5/8" 10M Cameron Singles, hydraulic, with 3-1/16" and 4-1/16" side outlets
Choke Manifold 3-1/16" 10k psi, (2) fixed chokes, (1) adjustable choke, (1) power choke
Control Unit 3,000 psi CAD M Series BOP control unit, 24-15 gallon bottles w/ 500 gallon reservoir


Mud Pumps (3) National 12-P-160, Triplex,1600 hp driven by two GE 752
Mud Pits 1467 bbls total active mud pits (3 mud pits + 1 slugging pit)
Mud Mixing Pumps (2) Mission Magnum
Shale Shakers (3) Brandt King Cobras
Desanders (1) Brandt King Cobra plus Mud Cleaner
Desilters Derrick (20) 4” cones
Degasser Derrick Vacu-Flo 1000 rated @ 1200 GPM
Mud Processing Pumps (2) Mission Magnum
Maximum Pressure 5,000 psi

Ref C4113
Inspection can be arranged

Price 15m Usd negotiable

Regards Keith
UK office 0044(0)1342 459089
Mobile 00 44(0) 7885775317
www.Yachts-Global.com
commercial@yachts-global.com
Skype yachtsglobal

Vessel Location: U.S.A
