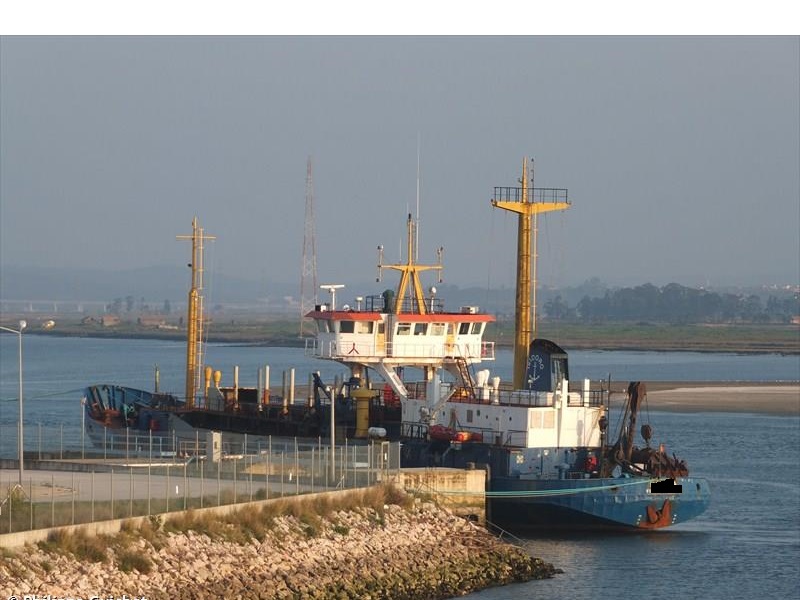

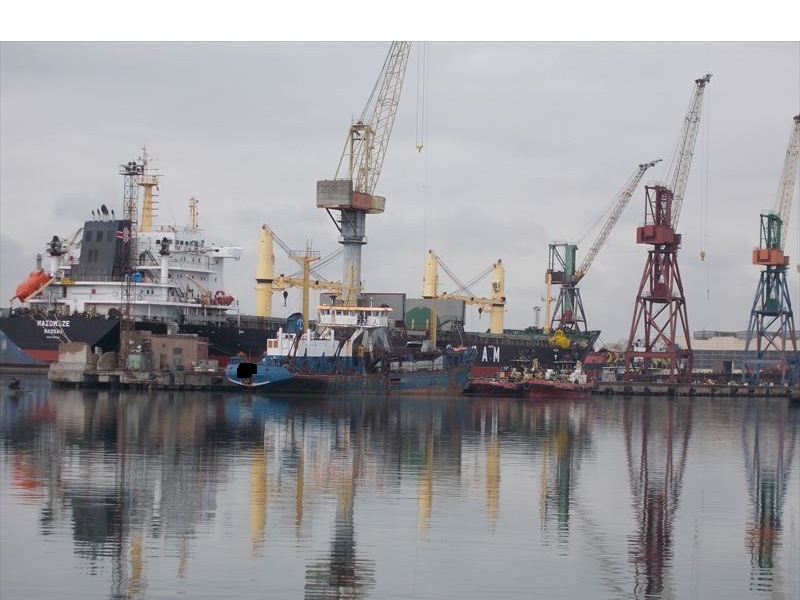

TRAIL SUCTION HOPPER DREDGER (TSHD) for Charter, Ref C3563

SHIP’S PARTICULARS
SHIP’S NAME:


FLAG: PALAU PORT OF REGISTRY: MALAKAL HARBOR
OWNER: Dredging Corporation

TYPE OF SHIP: TRAILING SUCTION HOPPER DREDGER
CLASS: INTERNATIONAL REGISTER OF SHIPPING ID: ---
BUILT BY: BELIARD-MURDOCH S.A., OOSTENDE YARD , BELGIUM DATE KEEL LAID ----
BUILT ON: 1973 Official # 212
MAIN ENGINE: 2 X BAUDOUIN DVX12SRJM, 4 stroke, single acting, 12 Cyl. 185 x 200, Mcr 736 kW
(1001HP); 1472 kW (2002 HP) total power
AUXILIARY ENGINES: 2 x MAN D0836 LE, 216 kWt / 294 HP each (installed in 2019)

1 Perkins England, Model: 1796/1500
PROPELLER: 1 FIRE/EMERG.FIRE PUMP 1/1
DREDGE EQUIPMENT
DREDGE PUMP:
Working capacity
up to 8000 m3/h
DREDGE PUMP ENGINE
(Installed new in 2011)
Guascor Power SF480TAi2-SP
860 kW/1180CV A
Up to 1250 rpm
HOPPER TOTAL VOLUME 1254 m3 HOPPER WORKING
CAPACITY Up to 1100 m3
BOTTOM DISCHARGE 12 hydraulically operated bottom doors; Average bottom discharge time abt 10 mins
SIDE DISCHARGE abt 10 mins (for silt) and up
SUCTION PIPE DIAM. 800 mm/one pipe, at starboard side
SIDE DISCHARGE PIPE DIAM. 800 mm/one discharge pipe, at port side
DREDGING DEPTH 18 M
PRINCIPAL DIMENSIONS (METERS) LOAD LINE DETAILS: DWT
(mt)
DISPL
(mt)
L.O.A. (LENGTH OVER ALL): 63.34 Fresh Water (+ 82 mm)
B.M. (BREADTH MOULDED): 12.3 Tropical 1163.54 mm
D.M. (DRAUGHT MOULDED): Summer 1250 mm 1490
WEIGHT OF LIGHT SHIP: 972.93 MT Freeboard Winter water 1336.46 mm
Height Max
(from bottom to Mast top) Freeboard fresh water
DRAFT FULL BALL. (M):
1.2/3.4 (fore/aft) w/o
water in FWTk
1.4/3.8 with full FWTk
Freeboard Summer water 1250 mm
DRAFT LADEN (M) 3.7 fore / 4.15 aft
GROSS REGISTER TONNAGE 1252 NET REGISTER TONNAGE 375
SUEZ CANAL, GRT N/A SUEZ CANAL NRT : N/A
PANAMA CANAL (ID: N/A) GRT: N/A PANAMA CANAL NRT : N/A
FULL AHEAD SPEED (w/o dredging): FUEL CONSUMPTION (MDO, MT/24 hours)
BALLAST 11.5 knots 2 M/Es: 1.5-1.8 (at 800-850 rpm) + D/G: 0.25-0.3
LADEN 9 knots 2 M/Es: 1.8-2 + D/G: 0.25-0.3
FUEL CONSUMPTION
DREDGING OPERATIONS
(dredging, discharging via pipeline, etc)
1 M/E: 1.25-1.4 + D/G: 0.25-0.3
2 M/Es: 1.5-1.8 + D/G: 0.25-0.3
Dredging Pump Engine: 0.6-0.75
CAPACITIES
(cub.m.):
HSFO TANKS (100%) TOTAL: n/a
LSGO TANKS (100%) TOTAL: n/a
MDO TANKS (100%) TOTAL: 86.3 ?3
LUB.OIL TANKS TOTAL: 5.965 ?3
BILGE TANKS TOTAL: 1.55 ?3
FRESH WATER DRINKING TOTAL: 40.98 m3 + 15.2 m3= 56.18 m3
SEWAGE HOLDING TANK 3.02 m3
MAX CREW (LSA) - 16 CREW Cabins / Crew number 7 cabins /16 Crew members (Safety equipment for 16
persons, however 17 beds are a

Inspection can be arranged
Charter rate Euro, negotiable
